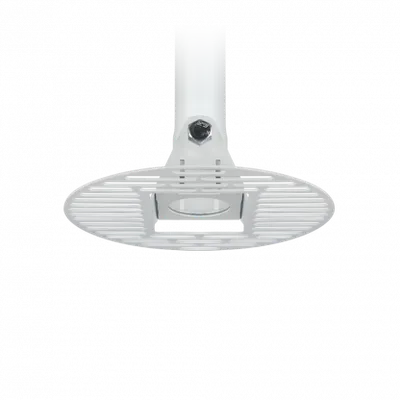

Clinton Electronics Camera Pole Round Mounting Plate- white
Part number CE-CPUPR
Quote onlyTrade pricing on request.
Contact us for availability
Trade accounts only. Ships nationwide from Salt Lake City, to your shop, the job site, or blind to your customer.
Universal round mounting plate for telescoping camera poles, 4.45 in slotted steel, tilts to 100 degrees. White (CE-CPUPR) or black (CE-CPUPRB).
A 4.45 inch slotted steel plate that adapts a telescoping camera pole to whatever you are hanging off it. The slots are the point: they take a dome, a multi sensor or a small enclosure without needing the manufacturer's own pendant adapter, and the plate can be trimmed with sheet metal snips for a smaller camera base.
Cable routes through the centre of the plate rather than around it, so the drop stays inside the pole and out of sight. It includes a removable U bracket and the pole mounting hardware, and tilts up to 100 degrees for an angled view off a vertical pole.
What is not included
The pole and the conduit adapter are sold separately. The plate will also mount directly to 3/4 inch EMT conduit with that adapter, which is useful on a retrofit where the conduit is already in place and only the camera is changing.
Ordering
White is CE-CPUPR and black is CE-CPUPRB. Match it to the pole rather than to the camera.
Specifications
| Dimensions | 4.45" diameter x 1.55" H |
|---|---|
| Weight | 0.162 lb (0.0736 kg) |
| Tilt | Up to 100° |
| Cable Routing | Through the centre of the plate |
| Included | Removable U-bracket and pole mounting hardware |
| Note | Plate can be trimmed with sheet metal snips for smaller cameras. Pole and conduit adapter sold separately. |
Common questions
- Will it fit my camera?
- It is slotted rather than drilled to a pattern, so it fits most dome and turret bases directly. Fixings are not included: bring screws and nuts to suit the camera.
